LED Tube Lighting T5 Integrated LED Batten Tube Light 1FT 2FT 3FT
4FT
Advantages of T5 LED Batten Tube Light:
1. Long operating lifespan: more than 5,000hours
2. Shock resistance,No Uv or IR radiation, No Blinking, No Mercury
& Lead free
3. Strict quality control, 72 hours aging test and complete
inspection before shipping.
4. High luminous intensity, low light degradation.
5. Wide input voltage AC85-265v,50-60Hz, worldwide usage.
6. All size, shape, color, brightness, can be customized. OEM and
ODM is available.
Our Services:
1. Support SKD;
2. Provide 2 years guarantee;
3. Inquiry will be reply within 12 hours;
4. We support customized order, and we have 8 years experience for
the lighting design and export.
Applications of T5 Tube Light:
1. Hotels,Conference,Meeting rooms, Schools,hospital
2. Factories,Production Area,Warehouse,Offices,Commercial Complexes
3. Residential, Institution Buildings,Retail store display lighting
4. Public buildings,parking garges,transportation, housing and the
underground garage
5. Coolers,Freezers&Damp Locations of the supermarket (no
pollution to food)
6. Undercabinet Lighting,General & Street Sign Backlighting
Product Parameters of T5 LED Tube Lighting:
| Power | 6w | 9w | 13w | 16w | 18w |
| Product length(mm) | 300mm | 600mm | 900mm | 1000mm | 1200mm |
| Input voltage | 120-277V/60HZ, 220-240V/50HZ |
| Light source | LED 2835SMD |
| Material | Housing: 1.0mm thick aluminum base with anodized on surface / Clear
Polycarbonate material End Caps:White PC material |
| CCT | 3000K 4000K 6500K |
| Installation | Surface Mounted, Hanging |
| Drive | 120V/60HZ or 240V/50Hz in-built LED driver |
| PF | ＞0.5 |
| CRI | ≥80 |
| Rated life | 30000 hours |
| LED type | SMD2835, 0.2W |
| Accessories | Solid Joiner(1 pcs), stainless mounting brackets( 2pcs), Screws( 2
pcs) |
| Application | School, Hospital, Corridor, Office, Library, Conference Room,Hotel |
| Product Name | T5 LED INTEGRATED Aluminum TUBE |
| Wattage | 6W | 9W | 14W | 16W | 18W |
| Lumen | 425LM | 765LM | 1190LM | 1360LM | 1530LM |
| Size(D*L) | 300mm | 600mm | 900mm | 1000mm | 1200mm |
| Finish | Milky White |
| Color Temperature | 3000K-6500K |
| Rated Voltage | AC 220-240V or AC85-265V |
| Power Factor | PF>0.5 / 0.9 |
| Material of House | PC |
| Rated Lamp Life | 50000H |
| Certification | CE , RoHS |
| Retail Packaging | Neutral Color box / Customized Color box |
| MOQ | 1000 Pieces |
| Lead Time | Sample order in 5-7 days, Official order depends on quantity |
Company Information:
ZOMLNK is a lighting factory, that has over 8 years' experience in
lighting field, export to Russian, Ukraine, Europe, Southeast Asia,
etc.
Currently we're support OEM, ODM, our main products include:
* T5 Led Tube
* T8 Led Tube
* Led Batten Lamp
* Led Panel Lamp
Best selling items, please contact us.

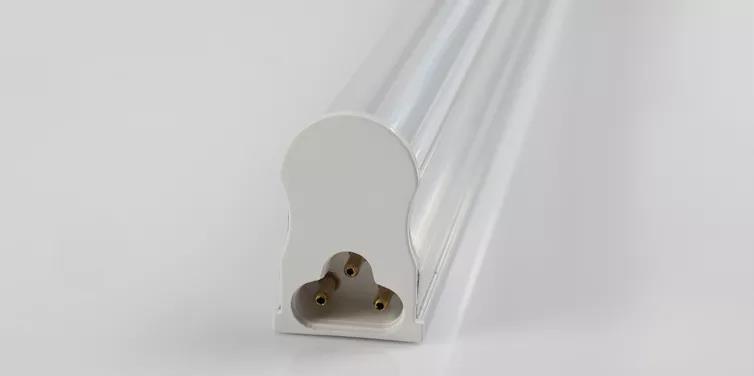

Photos of T5 LED Tube 1ft 2ft 3ft 4ft:
