LED Track Light Rotatable Spotlight Lamp Fixture 3w 5w 7w 9w 12w
15w 18w
Product Parameters of Led Track Light:
| Product Model | Power(w) | Lumen(lm) | LED Qty.(smd) | Unit Size(mm) |
| ZK-TR-118-3W | 3 Watts | 300lm | 3030/3pcs | D53*L145*H170mm |
| ZK-TR-118-5W | 5 Watts | 500lm | 3030/5pcs | D53*L45*H170mm |
| ZK-TR-118-7W | 7 Watts | 700lm | 3030/7pcs | D80*L145*H170mm |
| ZK-TR-118-9W | 9 Watts | 900lm | 3030/9pcs | D100*L180*H230mm |
| ZK-TR-118-12W | 12 Watts | 1200lm | 3030/12pcs | D100*L180*H230mm |
| ZK-TR-118-15W | 15 Watts | 1500lm | 3030/15pcs | D120*L190*H260mm |
| ZK-TR-118-18W | 18 Watts | 1800lm | 3030/18pcs | D120*L190*H260mm |
| Voltage Input | AC 85-265V, 50/60HZ |
| Luminous Intensity | 90lm/W, 100lm/W, 110lm/W, COB LED Chip LM-80 Listed |
| Power Factor/CRI | PF>0.85, Ra>80, THD<15% |
| Viewing Angle | Beam Angle:24°, Left-Right Rotating:270°, Up-Down Rotating:360° |
| Color Temp.(CCT) | WW:2700-3200K, NW:4000-4500K, CW:6000-6500K, R.G.B |
| Working Temp. | -22°F-+140°F(-30℃-60℃, Work Humidity: 5-95% R.H.), IP44 |
| Driver Type | Built-in Constant Current IC Driver |
| Track Adaptor | 2-Wires(Default), 3-Wires, 4-Wires Available |
| Base Type | Track Rail Bar Or Ceiling Mounted Base |
| Prodoct Material | Aerospace Aluminum+PMMA Lens+Stainless Steel |
| Lamp Life Span | Over 50,000 Hours, 3 Years' Quality Warranty |
| Cover Color | White/ Black Shell, Support Your Logo Print On Lamp Body And Color
Box |
Surface Mounted LED Track Spotlight:
1. Brand new high brightness LM-80 listed COB LED chips output
90lm/W, 100lm/W, 120lm/W.
2. Die cast aluminum heat sink is good at heat dissipation, stay
low surface temp.& long lifespan.
3. Internal constant current IC driver with over-temp.,
over-current, overload protection function.
4. No UV, no infrared, no mercury and other hazardous substances
for health and environment.
5. Beam angle 18°/24° for optional, wide rotating angle left-right
270°, up-down 360°.
6. Easy installation, surface mounted ceilling or track rail
mounted fast plug and play installation.
Product Application of Led Track Light 3w 5w 7w 9w 12w 15w 18w:
This light is used for project light of shop,clothing spotlight,
cabinet light, indoor ceiling, gallery, living room, showrooms,
cupboard, museums, lobbies, shopping mall, exhibition, jewelry
display, it makes what you are showing more nice-looking.
PS: The listing just for track rail light, not including rail
track(two conductor),you need to purchase it by yourself.

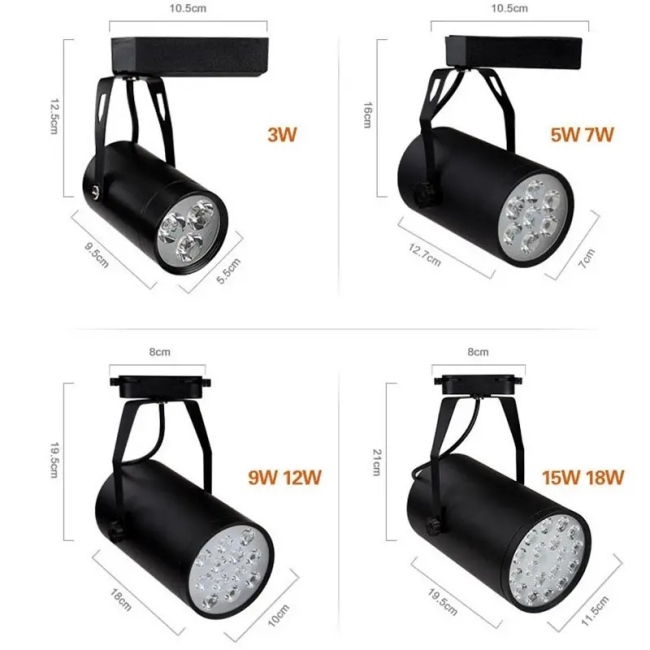

Real Photo of Surface Mount LED Spotlight Lamp Fixture:
