Led Linear Light Fixture 2ft 3ft 4ft 5ft 8ft Flat Ceiling Led
Batten Tube Light
Key Words of LED Linear Light Fixture:
Anti-glare PC Cover: high light transmittance, reach 92%
comfortable light, glare-free, eyes protection;
High Quality Aluminum Housing: good heat dissipation, different
weight aluminum housing for your choice;
High Brightness LED Chips: SMD2835 copper led bracket, longer
lifespan more than 50,000 hours;
Drive: High P width voltage constant current driver, input voltage
85-265V, 50/60Hz. Make the chip without screen flashing, short
circuit protection.
Detachable Housing:
Extrusion aluminum base with IP54 rated polycarbonate diffused
cover, new detachable design which is convenient and easy for
surface mounting installation and maintenance, will save much cost
on time and labor.
Nice white painted color better for indoor public lighting.
Long working time light source:
FR4 PCB with SMD2835 LEDs, long lifespan and high luminous
efficiency @ LM80.
We are available to provide 100lm/W, 120lm/W and 150lm/W options.
3000K-4000K-5000K tri-color CTT selection available.

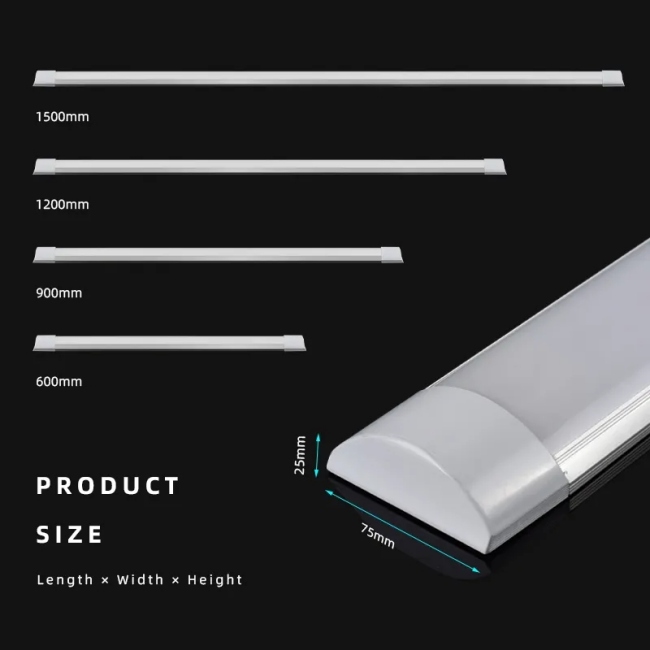

Parameter of Flat Ceiling Led Batten Tube Light:
| Model No. | Power | Size | Lumen | Input voltage | CRI | Material | Pcs/
ctn | Carton size |
| ZK-TU104-0.3M | 9W | 300*75*23 | 720lm | 100-240VAC | 80 | AL+PC | 20 | 34*14.5*16.7CM |
| ZK-TU104-0.6M | 18W | 600*75*23 | 1440lm | 100-240VAC | 80 | AL+PC | 20 | 64*14.5*16.7CM |
| ZK-TU104-0.9M | 28W | 900*75*23 | 2100lm | 100-240VAC | 80 | AL+PC | 20 | 94*14.5*16.7CM |
| ZK-TU104-1.2M | 36W | 1200*75*23 | 2700lm | 100-240VAC | 80 | AL+PC | 20 | 124*14.5*16.7CM |
| ZK-TU104-1.5M | 45W | 1500*75*23 | 3375lm | 100-240VAC | 80 | AL+PC | 20 | 154*14.5*16.7CM |
| ZK-TU104-2.4M | 72W | 2400*75*23 | 5760lm | 100-240VAC | 80 | AL+PC | 20 | 244*14.5*16.7CM |
Power Supply of Led Linear Light Fixture:
We have strictly control on production process and the quality of
material procurement, 80% of the lamp power supply adopts OSRAM and
Tridonic brands, also we have AC100-277V input voltage available,
to provice high quality and competitive products to all our
overseas buyers.
LED Batten Light VS Traditional Tube Light:
| 8W led tube | 800Lm | = | traditional 25W tube | = | 16W CFL bulb |
| 12W led tube | 1200Lm | = | traditional 30W tube | = | 20W CFL bulb |
| 18w led tube | 1800Lm | = | traditional 45W tube | = | 30W CFL bulb |
| 22w led tube | 2200Lm | = | traditional 60W tube | = | 40W CFL bulb |
| 24w led tube | 2400Lm | = | traditional 60W tube | = | 50W CFL bulb |
Application of led tri-proof light:
1. Living room, bedroom, kitchen, washroom;
2. School, university, hospital, hotel;
3. Conference, meeting room, show room, showcase;
4. Commercial complexes;
5. Factory, plant, warehouse, office, production line;
6. Supermarket, department store;
7. Subway station, bus, train and so on.

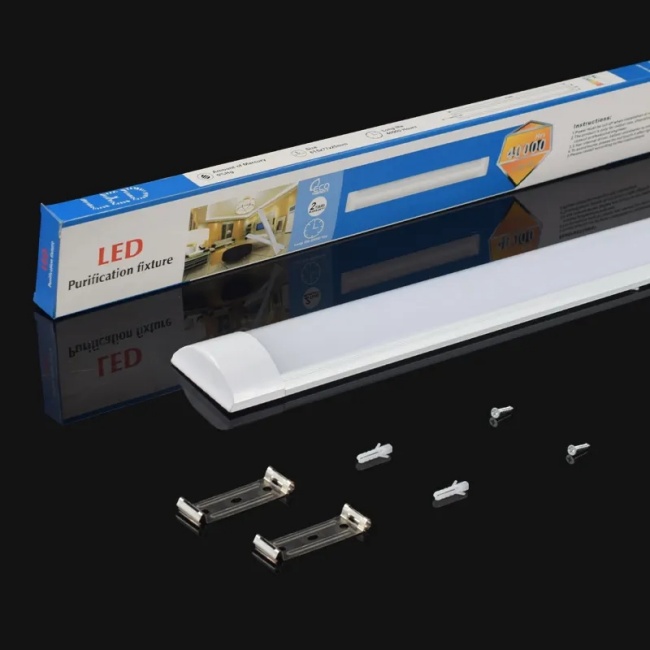

Photos of Aluminum Base Led Batten Light:
